A Rust desktop IFC viewer on xeoifc.dll, with gpui

xeoIFC gpui is a desktop IFC viewer for Windows without Qt. It is about 1,900 lines of Rust with gpui, the UI framework of the Zed editor, and the gpui-component widgets, and its source code is open (MIT licence). Its window has the layout of the Qt viewer.

The IFC work is done by xeoifc.dll, the native library of xeoIFC, through the same plain C header that the Qt viewer uses. There is no Rust crate of the library: the application declares the C functions it calls. This page shows how a gpui window hosts the 3D view of the library, and the calls in Rust.

1. The application

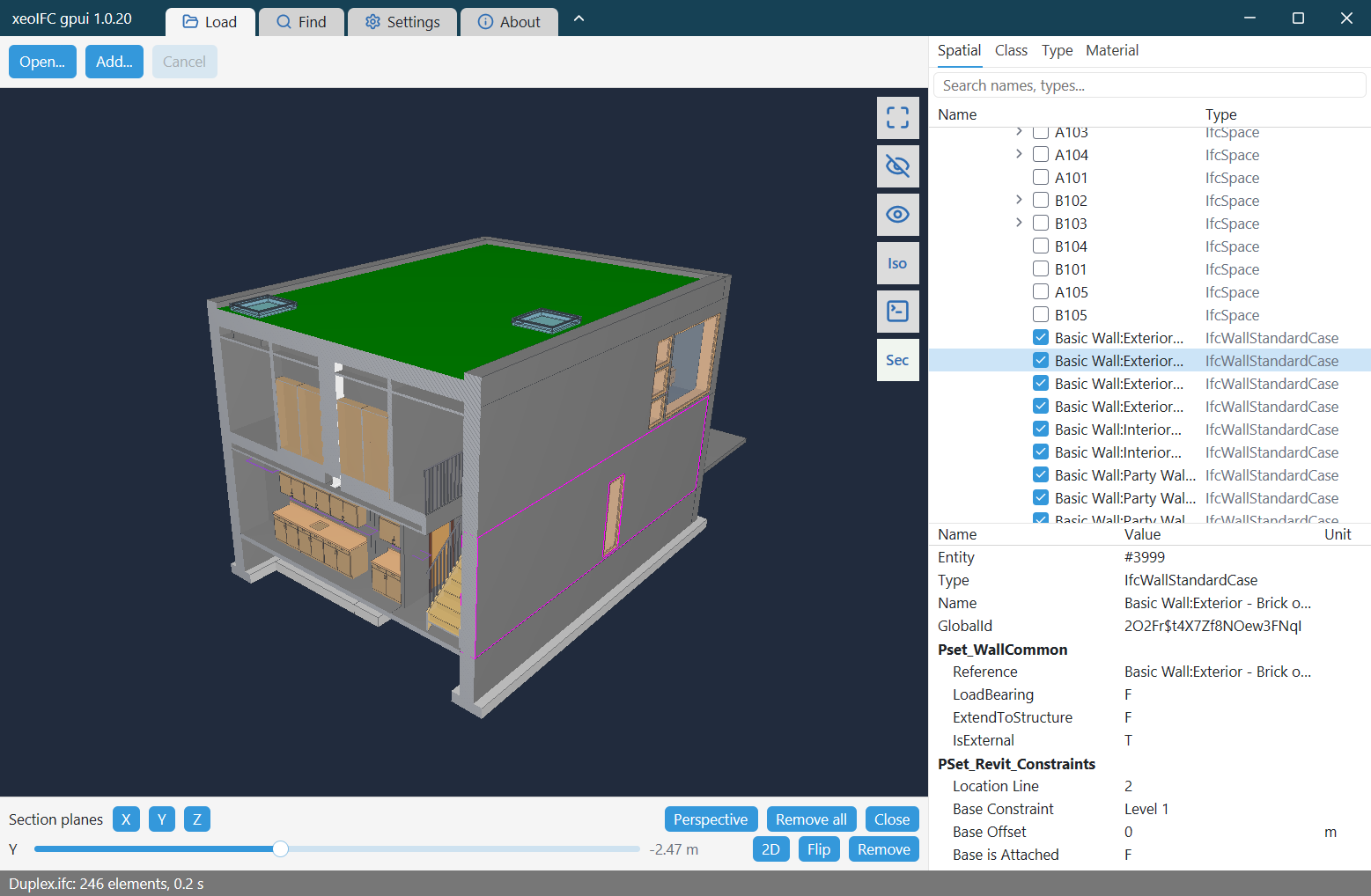

xeoIFC gpui with the Duplex model: tabs in the title bar, 3D view cut by a section plane, tool buttons, model tree, properties and the section panel
xeoIFC gpui with the Duplex model, cut by a section plane. The title bar with its tabs, the tool buttons, the tree, the properties and the section panel are gpui elements; the 3D view is drawn by the library.

The Qt viewer does more: IFC export (split and merge), sections along rail and road axes, the georeferencing inspector and reload of changed files. The library functions for these are the same.

2. Download

From the releases page:

3. How a gpui window hosts the 3D view

On Windows gpui draws with its own Direct3D 11 renderer and cannot show a texture of another renderer. The library renders with wgpu into a native window that you give it. So the application creates a child window of the gpui window, gives it to the library, and keeps it on the bounds of a gpui element.

// gpui::Window implements raw_window_handle::HasWindowHandle: the HWND of the gpui window.
let parent = match HasWindowHandle::window_handle(window).map(|handle| handle.as_raw()) {
    Ok(RawWindowHandle::Win32(handle)) => HWND(handle.hwnd.get() as *mut _),
    _ => panic!("the gpui window has no HWND"),
};
let child = CreateWindowExW(WINDOW_EX_STYLE(0), w!("XeoIfcViewport"), None, WS_CHILD | WS_CLIPSIBLINGS,
                            0, 0, 1, 1, Some(parent), None, Some(instance.into()), None)?;

// The library draws into the child window with its own surface (sizes are physical pixels).
let viewer = xeoifc_viewer_create(child.0 as u64, null_mut(), width, height, &mut error);

Three details make it work:

A gpui canvas element reports its bounds on every layout, and the child window follows:

canvas(
    move |bounds, window, cx| {
        let scale = window.scale_factor();
        this.update(cx, |this, _| this.place(bounds, scale));   // SetWindowPos + xeoifc_viewer_resize
    },
    |_, _, _, _| {},
)
// Left drag: rotate about the surface point under the cursor. Positions are physical pixels in the 3D view.
fn mouse_down(&mut self, event: &MouseDownEvent, _: &mut Window, _: &mut Context<Self>) {
    let (x, y) = self.physical_u32(event.position);
    viewer.anchor_pick(x, y);                                    // xeoifc_viewer_anchor_pick
    ...
}
fn mouse_move(&mut self, event: &MouseMoveEvent, _: &mut Window, _: &mut Context<Self>) {
    ...
    viewer.orbit(dx * Z_ROTATION_SPEED, dy * ROTATION_SPEED);    // xeoifc_viewer_orbit
}

The same pattern works for any renderer that takes a native window handle.

4. The library from Rust

The library has a plain C interface: functions, opaque handles, and UTF-8 JSON strings in and out. src/ffi.rs declares the 57 functions that the application uses, and src/engine.rs wraps them in three types that free what the library returns: Session, LoadJob and Viewer.

#[link(name = "xeoifc.dll", kind = "dylib")]
unsafe extern "C" {
    pub fn xeoifc_session_new() -> *mut XeoIfcSession;
    pub fn xeoifc_load_start(session: *mut XeoIfcSession, path: *const c_char, options_json: *const c_char,
                             callbacks: *const XeoIfcLoadCallbacks) -> *mut XeoIfcJob;
    pub fn xeoifc_job_poll(session: *mut XeoIfcSession, job: *mut XeoIfcJob, status_json: *mut *mut c_char) -> c_int;
    pub fn xeoifc_viewer_frame(viewer: *mut XeoIfcViewer) -> c_int;
    ...
}

Load a file in the background

A load job reads and tessellates the file on its own thread inside the library. A gpui task polls it every 30 ms on the main thread and gives the result to the renderer.

cx.spawn(async move |this, cx| {
    loop {
        cx.background_executor().timer(Duration::from_millis(30)).await;
        if this.update(cx, |this, cx| this.poll(cx)).is_err() { break; }
    }
}).detach();

match self.session.poll(&job) {                          // xeoifc_job_poll: 0 running, 1 done, 2 failed, 3 cancelled
    Poll::Running { phase, done, total } => { /* status line */ }
    Poll::Done(status) => {
        let pack = job.take_pack();                       // the tessellated model
        let scene = viewer.set_scene(&pack, add, placement.as_ref());
        let tree = ModelTree::build(&status["tree"], &status["groupings"]);
        ...
    }
    ...
}

Find elements

The document API is one function, xeoifc_call: a JSON request in, a JSON response out.

let out = self.session.call("query.select", json!({ "text": "name ~ \"M_Fixed\"", "includeRefs": true, "limit": 100000 }), &doc_id);
// {"ok":true,"result":{"count":40,"refs":["#6426","#6497",..],..},..}
let found: Vec<ElementRef> = ...;
viewer.fit_elements(&found);                              // xeoifc_viewer_fit_elements
viewer.set_selection(&found);                             // xeoifc_viewer_set_selection

Section planes

// Four floats per plane: unit normal and -dot(point, normal); at most six planes.
viewer.set_clip_planes(&[0.0, 1.0, 0.0, -7.07]);          // xeoifc_viewer_set_clip_planes
viewer.view_section(Some(&[x, y, z, 0.0, 1.0, 0.0]));     // a 2D view straight at the section

What the library can do, with load times: the Qt viewer page.

5. Build it yourself

You need 64-bit Windows 10 or 11, the Rust stable toolchain with the MSVC target, and the Visual Studio 2022 or 2026 Build Tools with a Windows SDK. In release builds gpui compiles its shaders with fxc.exe of the Windows SDK, so build from a Visual Studio developer prompt. In the unpacked xeoifc-gpui-source.zip:

cargo run --release -- model.ifc

The first build compiles gpui and about 400 other crates and takes several minutes. The build links sdk\lib\windows-x64\xeoifc.dll.lib and copies xeoifc.dll next to the exe. Cargo.toml pins gpui to an exact version: gpui has no stable release yet and its API changes between versions.

Linux and macOS are not supported. gpui runs there, but the application has only the Windows child window; on Linux the library needs an X11 window, as in the Qt viewer.

6. Licence

xeoIFC gpui is open source under the MIT licence. You can use, change and distribute it, also in commercial products. gpui, gpui-component and the other Rust crates in the executable have their own licences (Apache-2.0, MIT and similar); THIRD-PARTY-NOTICES-gpui.txt in both zips lists them with their texts.

xeoifc.dll is not open source. It is licensed under the xeoIFC Testing License (sdk/LICENSE.txt in the source zip): you can use and redistribute it unmodified, in binary form and free of charge, solely for testing and evaluation. For commercial or production use, contact xeoFoundry. All functions work without a licence key. Without a key, each IFC file that the library writes gets one more element: an IfcBuildingElementProxy with the text "xeoIFC evaluation version" next to the model. A licence key from xeoFoundry removes it; enter it under Settings.
